ABOUT US

Swintool is a leading designer and manufacturer of  linkage and Flange Clamps  with certificate of ISO 9001:2008.  Our product is widely used in these fields:

1. Agriculture Machinery (tractor, rotary cultivator etc)

2. Engineering Construction Machinery ( paver, soild waste compactor,crusher)

3. Tensile steel structure engineering

4. Automotive manufacture industry

5. Marine industry



Our range of products includes SAE Flange Clamps, Turnbuckles, top link assembly, Ratchet turnbuckle, Industrial ratchet wrench. These advantages of our product are following:

1. Flange Clamps: SAE J 518 (ISO 6162 -1/-2) standards, from hot forging, CNC machining in our factory.  OEM solution is also offered by SWINTOOL.

2. Turnbuckle:  A leader in Turnbuckle DIN 1478 made of seamless steel pipe.  500 ton Horizontal hydraulic machine for pipe forming bigger diameter and longer length, also for drop forging.

3. Top link assembly:  Professional processing technology of more than 15 year experience, CNC precision machining, Hot forgings, heat treatment and strict assembling procedure.

3. Ratchet turnbuckle:  As a top manufacturer and designer, we have our company standard of ratchet turnbuckle, also can design for your special need.

4. Ratchet wrench:  We can design the Industrial ratchet wrench with heavy duty, big size and special purposes for original equipment manufacture.



Our customers are OEMs, end-user, wholesalers, what other advantages do we have to attract our customers?

1. Innovation free design services by 3D representation for long customer

2. Strict Quality control, we can provide Certificate 3.1 for our customers.

3. Punctual and correct Deliveries

4. One stop service for  cold forging, hot forging, stamping parts, stamping parts, tools. Based on our industrial chains enviroment, we can help our customers to purchase, in order to saving times from other suppliers.



Swintool is growing up to be a big brand in this area. Most importantly, we are becoming a specialist for linkage and Flange Clamps technology solution. We devote ourselves to be your most reliable partner and help you to save cost and creat value.

Our advantage of Turnbuckle DIN 1478:

A professional manufacturer of Turnbuckle DIN 1478, equiped with our hydraulic pressure machine (350 ton) we can offer pipe forming size up to 100mm, the lenght is up to 600mm. We can offer Q235A , Q345B (16Mn) and 316 stainless steel etc.

Our DIN 1478 turnbuckle loadability is better than our competitor, our breaking load limit is certificated by SGS.  The data will show:



DIN 1478 turnbuckle SIZE

SWINTOOL B.L.L (KG, SGS)

SWINTOOL S.W.L(KG)

COMPETITOR S.W.L (KG)

TIMES

M8

5637

1127

410

2.75

M10

8553

1710

650

2.63

M12

10860

2172

930

2.34

M16

14210

2842

1770

1.61

M20

20210

4042

2700

1.50

M24

34900

6980

3920

1.78

M30

42870

8574

6250

1.37



A professional manufacturer of custom ratchet turnbuckle and speical ratchet wrench, with 3D model drawing support(UG, Solidworks etc), we design the ratchet wrench with intellectural property right, in 2013 we applied 2 patents of ratchet wrench, in 2014 we will get 4 patents of ratchet wrench.

The third party can offer breaking load testing, material testing including chemical compositions and physical property etc.

  • One-Piece Flange Clamps FL-W FS-W Series


    From Hot forging to CNC Machining of SAE Flange Clamps in Swintool location.
    Material is available in Stainless steel and C45 carbon steel.

    7 ¥ 0.00
  • SAE Split Flange Clamps FL FS Series

    From Hot forging to CNC Machining of SAE Flange Clamps in Swintool location.
    Material is available in Stainless steel and C45 carbon steel.

    15 ¥ 0.00
  • Turnbuckle DIN1478 Frame Body

    Turnbuckle is as per DIN1478 standard
    high quality with 6H tolerance
    size from M6 to M48.
    Material is carbon steel Q235A, Q345B, stainless steel 316L

    6 ¥ 0.00
  • Ratchet wrench for drilling machine

    We can develop similar ratchet tools: Ratchet arm Ratcheting crank handles Alignment ratchet wrench Square drive ratchet wrench Antique ratchet wrench Vintage ratchet wrench

    15 ¥ 0.00
  • SAE Flange Halves Flat FCSF-DN

    From Hot forging to CNC Machining of SAE Flange Clamps in Swintool location.
    Material is available in Stainless steel and C45 carbon steel.

    15 ¥ 0.00
  • DIN 1478 turnbuckle Hooks

    Material: Carbon steel
    Type: European Type
    Place of Origin: Zhejiang, China (Mainland)
    Brand Name: swintool
    Surface Treatment: Hot Galvanized
    Material: Carbon steel
    Zinc Plated Color: self-color,black ,electroplating,painted
    Construction: Drop forged,ball joint
    certificate: SGS AND ISO BREAKING
    LOAD ABILITY: 45TON
    Two end fittings: hooks,eye bolt,jaws

    11 ¥ 0.00
  • Spot welding tip remover electrode wrench

    Two kinds of Electrode wrench tip remover for spot wleding robot machinery,electrode wrench spot welding tip remover Tip dresser ratchet manually type

    11 ¥ 0.00
  • Tractor top links cat 1 2 3

    Material: Carbon steel, S45C Type: European Type Place of Origin: Zhejiang, China (Mainland) Brand Name: swintool Surface Treatment: coating grey Product: Coating grey carbon steel tractor linkage Model Numbe: OEM USAGE: TRACTOR LINKAGE Certificate: ISO,SGS Color: self-color,black ,electroplating,painted Size: M10-M48 Standard: European type Surface: Electric galvanized,Hot dip galvanized

    7 ¥ 0.00
  • L ratchet turnbuckle Jaw&Jaw

    Material: Carbon steel Type: European Type, European Type Place of Origin: Zhejiang, China (Mainland) Brand Name: swintool Surface Treatment: Hot Galvanized Product: High qualityJaw&Jaw Ratchet turnbuckle with extension ratchet wrench Steel Material: Carbon steel Surface: galvanized or hot dipped galvanized,Zinc Plated Color: self-color,black ,electroplating,painted Construction: Drop forged,ball

    7 ¥ 0.00
  • Rod end weld-on tractor lower link arm

    Material: Carbon steel, Carbon steel Type: European Type, European Type Place of Origin: Zhejiang, China (Mainland) Brand Name: swintool Surface Treatment: Hot Galvanized Product: Rod ends for lower links attached to tractor parts Surface: galvanized or hot dipped galvanized,Zinc Plated Color: self-color,black ,electroplating,painted Construction: Drop forged,ball joint certificate: SGS AND ISO use: for top link

    6 ¥ 0.00
  • Tractor Ratchet Jacks

    Material: Carbon steel Type: European Type, European Type Place of Origin: Zhejiang, China (Mainland) Brand Name: swintool Surface Treatment: Hot Galvanized Product: High qualityJaw&Jaw Ratchet turnbuckle with extension ratchet wrench Steel Material: Carbon steel Surface: galvanized or hot dipped galvanized,Zinc Plated Color: self-color,black ,electroplating,painted Construction: Drop forged,ball

    6 ¥ 0.00
  • adjustable top links

    Material: Carbon steel Type: US Type Place of Origin: Zhejiang, China (Mainland) Brand Name: SWINTOOL Surface Treatment: Zinc Plated Name: Three point linkage hydraulic Ball ends top link Payment Terms: T/T Size: M20-M36/customized Standard: DIN Standard Item: tractor front linkage Usage: Lifting Color: Customer Package: blue constructure bags/Customer's Requirements

    5 ¥ 0.00
  • ratchet turnbuckle rod ends

    Material: Carbon steel Type: European Type, European Type Place of Origin: Zhejiang, China (Mainland) Brand Name: swintool Surface Treatment: Hot Galvanized Product: High qualityJaw&Jaw Ratchet turnbuckle with extension ratchet wrench Steel Material: Carbon steel Surface: galvanized or hot dipped galvanized,Zinc Plated Color: self-color,black ,electroplating,painted Construction: Drop forged,ball joint certificate: SGS AND ISO BREAKING LOAD ABILITY: 45TON Two end fittings: hooks,eye bolt,jaws

    5 ¥ 0.00
  • DIN 1478 turnbuckle Jaws

    Material: Carbon steel
    Type: European Type
    Place of Origin: Zhejiang, China (Mainland)
    Brand Name: swintool
    Surface Treatment: Hot Galvanized
    Material: Carbon steel
    Zinc Plated Color: self-color,black ,electroplating,painted
    Construction: Drop forged,ball joint
    certificate: SGS AND ISO BREAKING
    LOAD ABILITY: 45TON
    Two end fittings: hooks,eye bolt,jaws

    5 ¥ 0.00
  • S ratchet turnbuckle Jaw&Jaw

    Material: Carbon steel Type: European Type, European Type Place of Origin: Zhejiang, China (Mainland) Brand Name: swintool Surface Treatment: Hot Galvanized Product: High qualityJaw&Jaw Ratchet turnbuckle with extension ratchet wrench Steel Material: Carbon steel Surface: galvanized or hot dipped galvanized,Zinc Plated Color: self-color,black ,electroplating,painted Construction: Drop forged,ball

    5 ¥ 0.00
  • Tractor lift leveling arm links Clevis Jaw

    Material: Carbon steel Type: US Type Place of Origin: Zhejiang, China (Mainland) Brand Name: SWINTOOL Surface Treatment: Zinc Plated Name: Three point linkage hydraulic Ball ends top link Payment Terms: T/T Size: M20-M36/customized Standard: DIN Standard Item: tractor front linkage Usage: Lifting Color: Customer Package: blue constructure bags/Customer's Requirements

    4 ¥ 0.00
  • Forged top link

    Material: Carbon steel, S45C Type: European Type Place of Origin: Zhejiang, China (Mainland) Brand Name: swintool Surface Treatment: coating grey Product: Coating grey carbon steel tractor linkage Model Numbe: OEM USAGE: TRACTOR LINKAGE Certificate: ISO,SGS Color: self-color,black ,electroplating,painted Size: M10-M48 Standard: European type Surface: Electric galvanized,Hot dip galvanized

    4 ¥ 0.00
  • LL ratchet turnbuckle Jaw&Jaw

    Material: Carbon steel Type: European Type, European Type Place of Origin: Zhejiang, China (Mainland) Brand Name: swintool Surface Treatment: Hot Galvanized Product: High qualityJaw&Jaw Ratchet turnbuckle with extension ratchet wrench Steel Material: Carbon steel Surface: galvanized or hot dipped galvanized,Zinc Plated Color: self-color,black ,electroplating,painted Construction: Drop forged,ball

    4 ¥ 0.00
  • SAE Flange Clamps with metric thread FL-WM/FS-WM

    From Hot forging to CNC Machining of SAE Flange Clamps in Swintool location.
    Material is available in Stainless steel and C45 carbon steel.

    4 ¥ 0.00
  • H ratchet turnbuckle eye&eye

    Material: Carbon steel Type: European Type, European Type Place of Origin: Zhejiang, China (Mainland) Brand Name: swintool Surface Treatment: Hot Galvanized Product: High qualityJaw&Jaw Ratchet turnbuckle with extension ratchet wrench Steel Material: Carbon steel Surface: galvanized or hot dipped galvanized,Zinc Plated Color: self-color,black ,electroplating,painted Construction: Drop forged,ball joint certificate: SGS AND ISO BREAKING LOAD ABILITY: 45TON Two end fittings: hooks,eye bolt,jaws

    3 ¥ 0.00

Advantage of SAE Flange Clamps





Swintool mainly produce Flange Clamp with 4 blots according to SAE J 518 standards, there are two kinds: one-piece flange clamp and split flange clamp; two series: SAE Code 61 3000 PSI flange clamp ISO 6162-1 3,5 MPa (35 bar) to 35 MPa (350 bar) and SAE Code 62 6000 PSI working pressure ISO 6162-2 42 MPa (420 bar); Two Size Range: DN 13 to DN 127 for L series and DN 13 to DN 76 for S series.



We also provide 37 deg flare flange clamps and OEM flange clamp solutions. Based on specialty equipment for hot forging and machining.

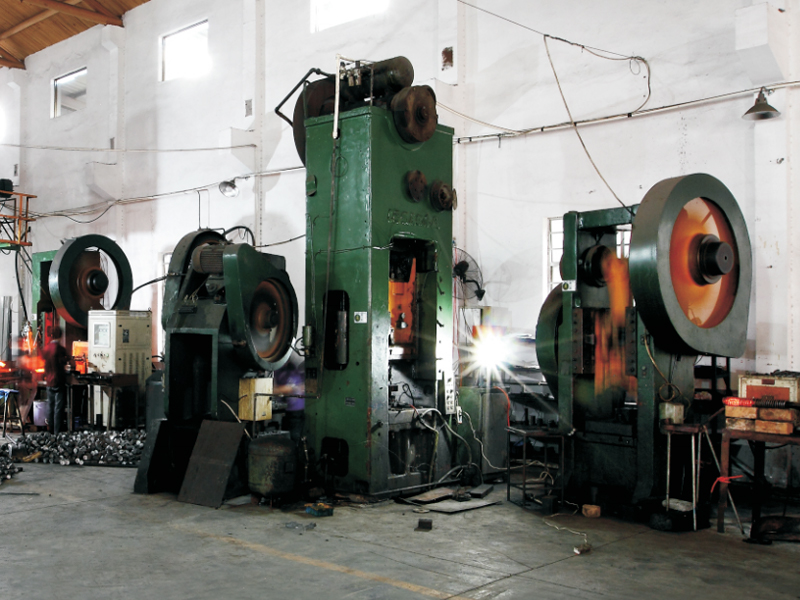

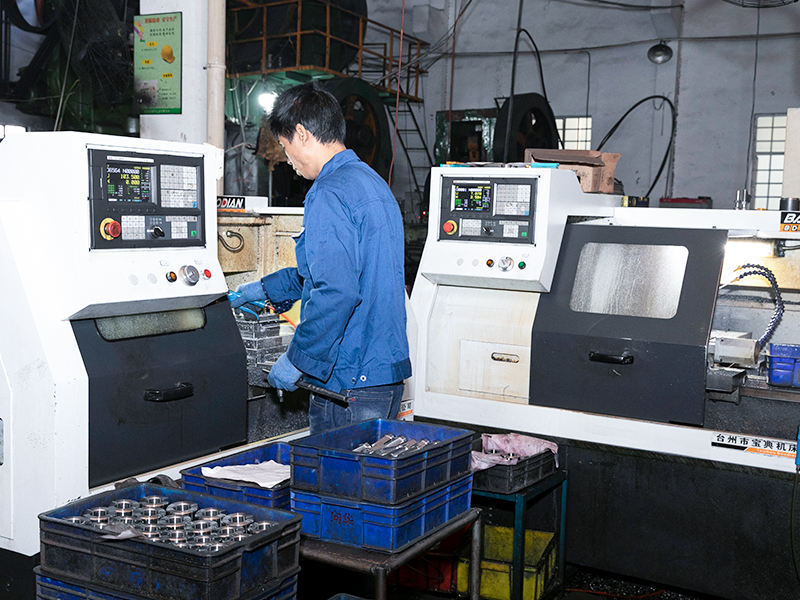

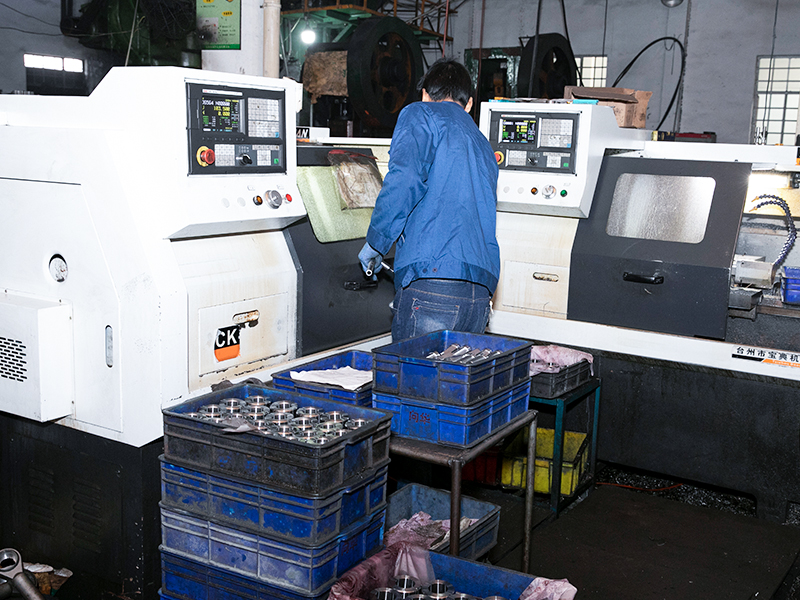

Workshop and Equipement
