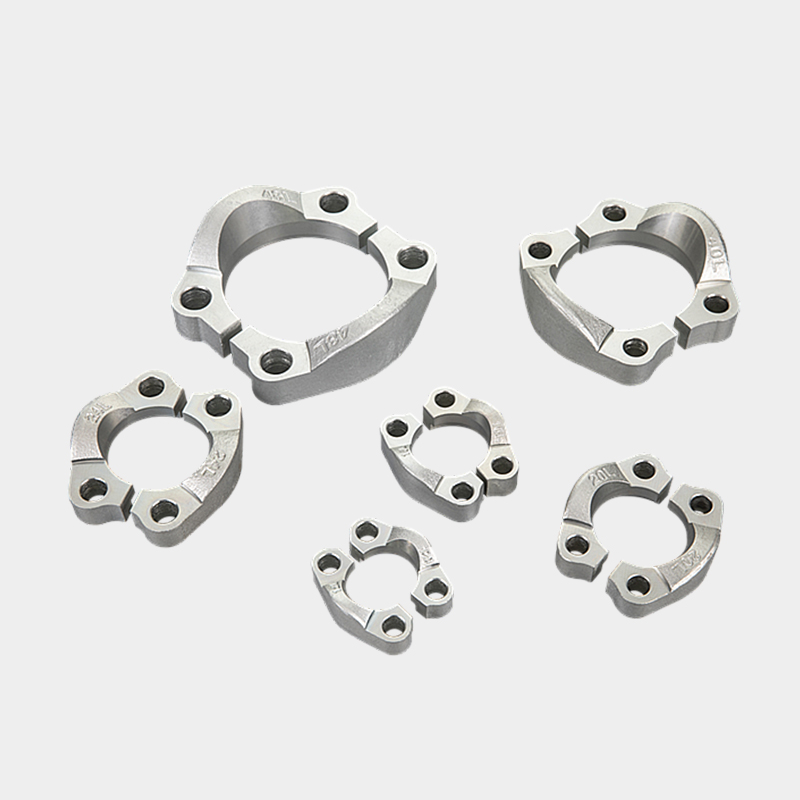

FL-24 SAE Split Flange Clamps 3000PSI

The FL-24 SAE Split Flange Clamps, with a pressure rating of 3000 PSI, are indispensable components in high-pressure hydraulic systems. These clamps are engineered to provide secure, leak-free connections, ensuring the reliable performance and safety of hydraulic systems across various industries. As hydraulic systems are integral to the operation of many types of machinery and equipment, the quality and dependability of their components are paramount. FL-24 SAE Split Flange Clamps meet these critical demands with their robust design and precise engineering. One of the key features of FL-24 SAE Split Flange Clamps is their ability to handle pressures up to 3000 PSI. This high-pressure capability is crucial for applications where hydraulic systems are subjected to significant forces and stresses. Whether it's lifting heavy loads, driving powerful machinery, or operating in harsh environments, the reliability of these clamps ensures that the hydraulic systems can perform their tasks without the risk of failure due to connection leaks or bursts. The versatility of FL-24 SAE Split Flange Clamps makes them suitable for a wide range of applications. In construction equipment, for example, these clamps are used to secure hydraulic hoses and tubes that control the movement of excavators, loaders, and other heavy machinery. In industrial settings, they are critical for the operation of manufacturing and processing equipment where high-pressure hydraulics are required. The automotive industry relies on these clamps for the hydraulic systems in trucks, buses, and other large vehicles, while the marine industry uses them in ships and offshore equipment to ensure reliable hydraulic operations in challenging marine conditions.

PART NO.	FLANGE SIZE	BOLT	DIMENSIONS
			A	B	M	d	N
FL-08	1/2"	M8x25	54	46	38.1	9	17.5
FL-12	3/4"	M10x30	65.1	52	47.6	11	22.2
FL-16	1"	M10x30	69.8	59	52.4	11	26.2
FL-20	1.1/4"	M10x30	79.4	73	58.7	11	30.2
FL-24	1.1/2"	M12x35	93.7	83	69.8	13.5	35.7
FL-32	2"	M12x35	101.6	97	77.8	13.5	42.9
FL-40	2.1/4"	M12x40	114	108	89	13.5	50.8
FL-48	3"	M16x50	135	130.6	106.4	16.7	62
