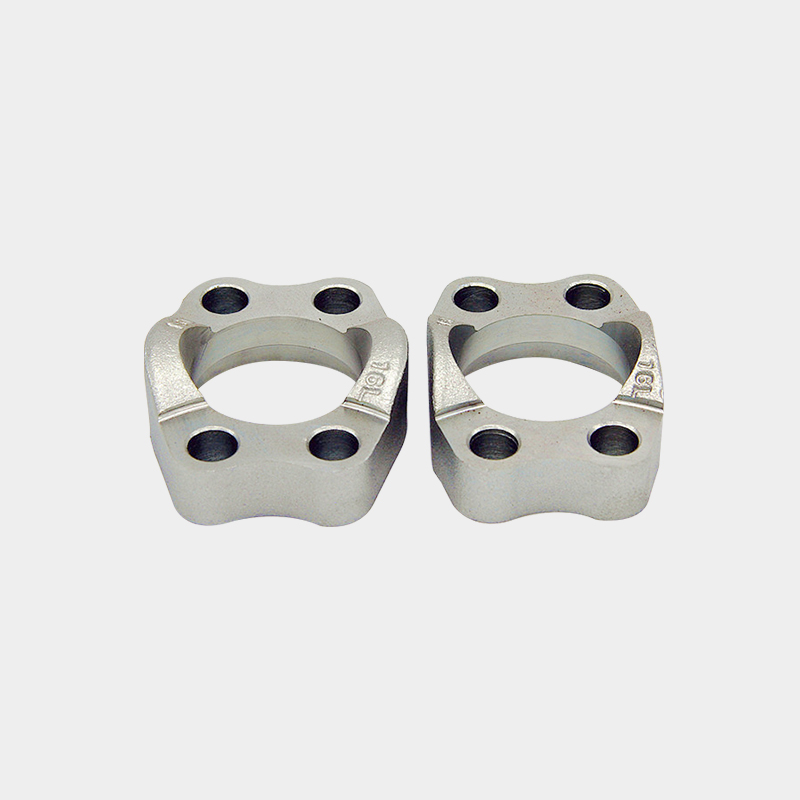

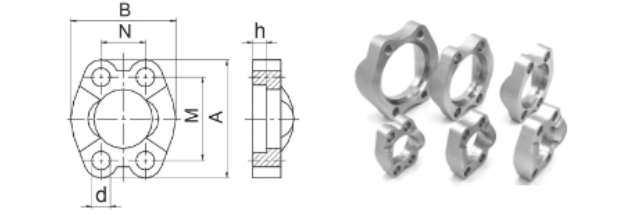

| PART NO. | FLANGE SIZE | BOLT | DIMENSIONS | |||||
| A | B | M | d | N | h | |||
| FL-08W | 1/2" | M8x25 | 54 | 46 | 38.1 | 9 | 17.5 | 6.2 |
| FL-12W | 3/4" | M10x30 | 65.1 | 52 | 47.6 | 11 | 22.2 | 6.2 |
| FL-16W | 1” | M10x30 | 69.8 | 59 | 52.4 | 11 | 26.2 | 7.5 |
| FL-20W | 1.1/4" | M10x30 | 79.4 | 73 | 58.7 | 11 | 30.2 | 7.5 |
| FL-24W | 1.1/2" | M12x35 | 93.7 | 83 | 69.8 | 13.5 | 35.7 | 7.5 |
| FL-32W | 2" | M12x35 | 101.6 | 97 | 77.8 | 13.5 | 42.9 | 9 |
| FL-40W | 2.1/4" | M12x40 | 114 | 108 | 89 | 13.5 | 50.8 | 9 |
| FL-48W | 3" | M16x50 | 135 | 130.6 | 106.4 | 16.7 | 62 | 9 |
1. Working pressure of SAE code 61 series flange clamps is 3000 PSI, 3,5 MPa (35 bar) to 35 MPa (350
● Product brand: Swintool(If you need it, we can customize the LOGO for you on the product)
Turnbuckle is according to DIN1478 2005 version. Hot drop forged Jaws with RH and LH thread. Bolt ac
1. Forged weld with eye material is C45. 2. Tractor three-point hitch is also called 3-point linkage
This flange is an industrial component, mainly used in piping systems and equipment connections, des
The hydraulic square flange is a component used in hydraulic systems to connect various hydraulic el
Swintool is China Whole Flange Clamps 3000PSI suppliers and Whole Flange Clamps 3000PSI wholesaler, with a certificate of ISO 9001:2008.
Our range of products includes SAE flange clamps, turnbuckles, top link assemblies, ratchet turnbuckles, industrial ratchet wrenches. The advantages of our product are the following:
1. Flange Clamps: SAE J 518 (ISO 6162 -1/-2) standards, from hot forging, CNC machining in our factory. SWINTOOL offers OEM solutions. We also wholesale stainless steel Whole Flange Clamps 3000PSI in bulk.
2. Turnbuckle: A manufacturer in turnbuckle DIN 1478 made of seamless steel pipe. 500-ton Horizontal hydraulic machine for pipe forming bigger diameter and longer length, also for drop forging.
3. Top link assembly: Professional processing technology of more than 15 years of experience, CNC precision machining, Hot forgings, heat treatment and strict assembling procedure.
4. Ratchet turnbuckle: As a top manufacturer and designer, we have our company standard of ratchet turnbuckles, also can design for your special need.
5. Ratchet wrench: We can design the Industrial ratchet wrench with heavy duty, big size and special purposes for original equipment manufacture.
