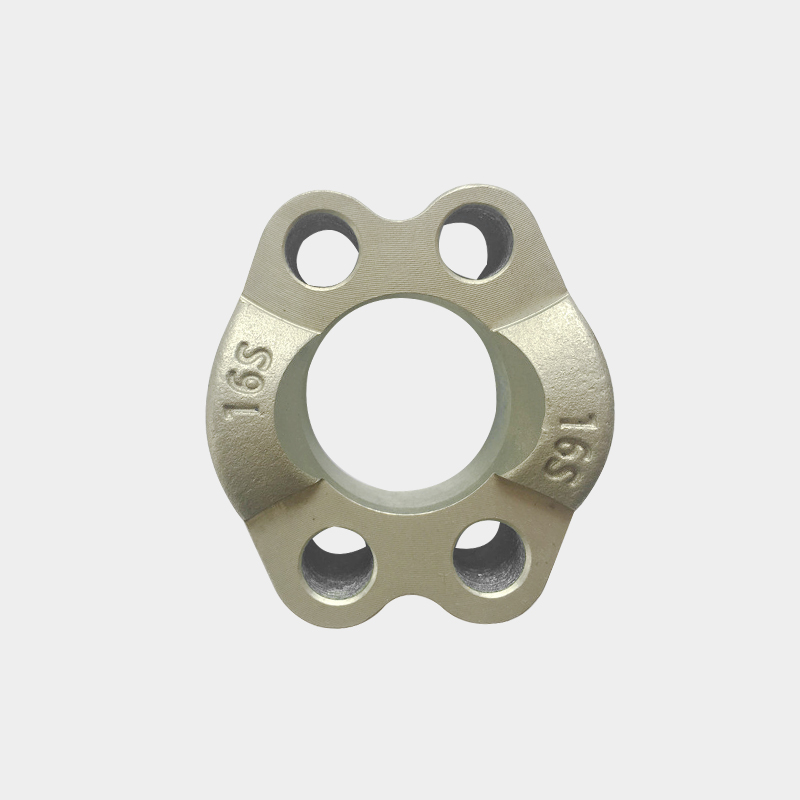

Whole Flange Clamps 6000PSI

Inquiry

1. The working pressure of SAE code 62 series flange clamps is 42 MPa (420 bar).

2. SAE Flange clamps dimensions is according to ISO 6162-2:2012. ISO Nominal Size: DN 13; DN 19; DN 25; DN 32; DN 38; DN 51; DN 64;

DN 76; DN 89; DN 102; DN 127; Inch size: 1/2"；3/4"；1"；1 1/4"；1 1/2"；2"；2 1/2"；3".

3. Material of SAE one-piece flange clamp is made of carbon steel C45, Stainless steel 304, 316 or 316L.

4. The external surface Corrosion protection of all carbon steel flange clamps,shall be protected with an appropriate coating to

pass a minimum 72-h salt spray test in accordance with ISO 9227.

5. Test requirement for pressure/temperature: Flange type connections conforming to this part of ISO 6162 shall be subjected to the

burst and cyclic endurance tests specified in ISO 19879 to verify that they meet the specified pressure/temperature requirements.

6. Designation of one piece flange clamps connections

One-piece flange clamp of size DN 25: Clamp ISO 6162-2, FC×25

Swintool company use FS-16(dash size)W: SAE 6000 psi flange clamps size 1” inch.

Parker company use FUS6x(2,3,4,5,6,8, etc) and FCC (dash size FCCT2 )

Stauff company use BM-60x(1,2,3,4,5,6,7,8,9,10,11)

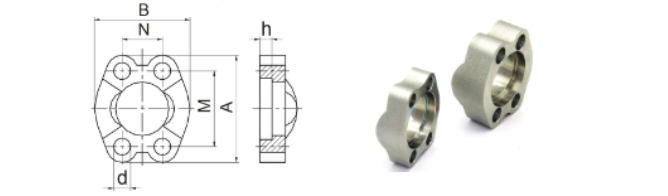

7. Dimensions of SAE Flange Clamp Code 62

PREV：Whole Flange Clamps 3000PSI
NEXT：One-piece Sae Flange Clamps

Description
Inquiry

PART NO.	FLANGE SIZE	BOLT	DIME NSIONS
PART NO.	FLANGE SIZE	BOLT	A	B	M	d	N	h
FS-08W	1/2"	M8x30	56.3	47	40.5	9	18.2	7.2
FS-12W	3/4"	M10x35	71.4	60	50.8	11	23.8	8.2
FS-16W	1"	M12x45	80.9	70	57.1	13	27.8	9
FS-20W	1.14"	M14x30	95.2	77	66.7	15	31.8	9.8
FS-24W	1.1/2"	M16x55	112.7	95	79.5	17	36.5	12
FS-32W	2"	M20x70	133.3	114	96.8	21	44.5	12
