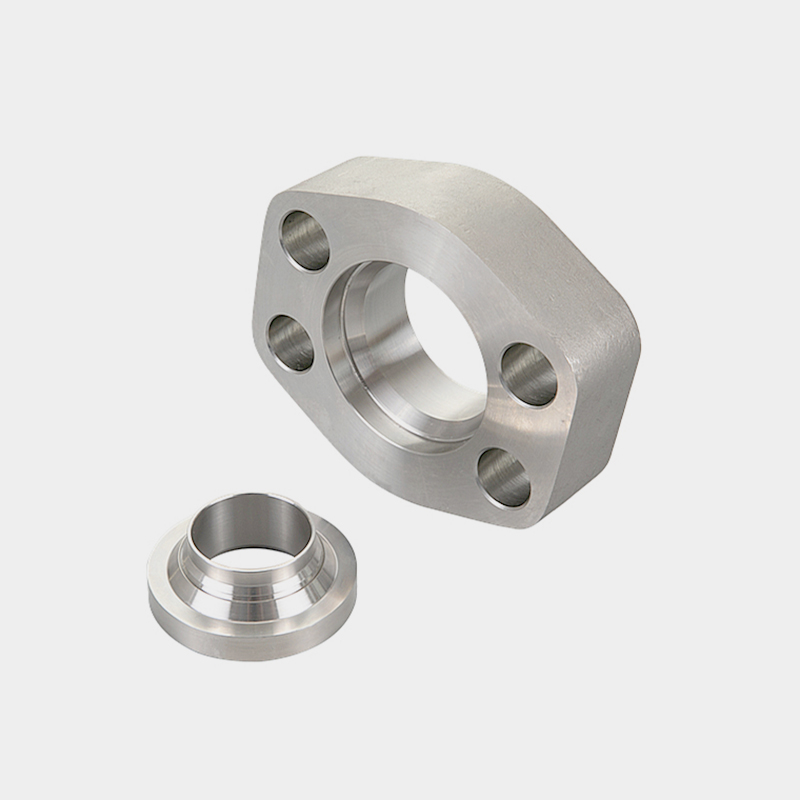

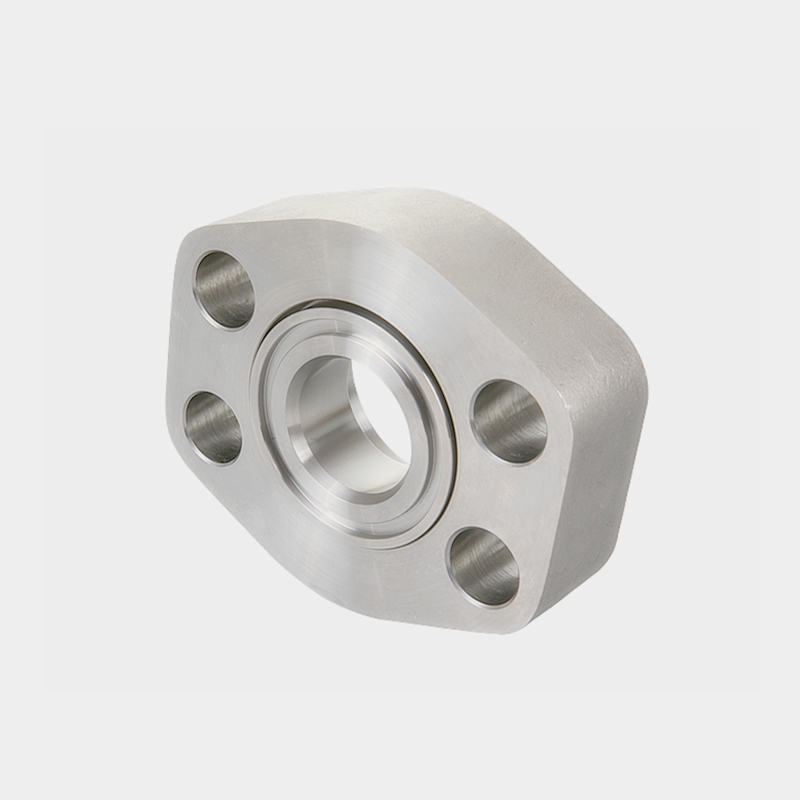

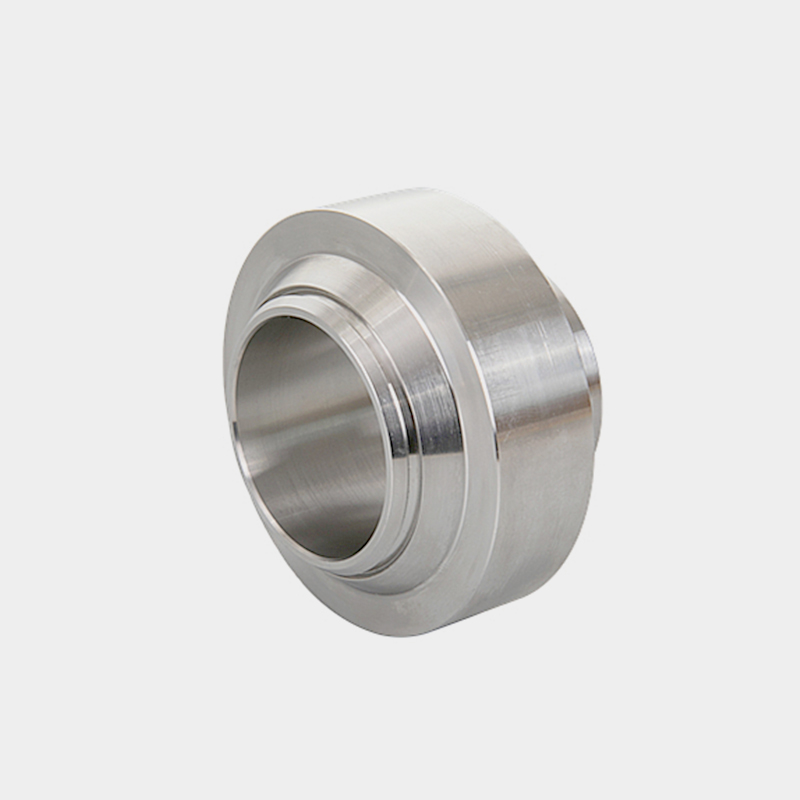

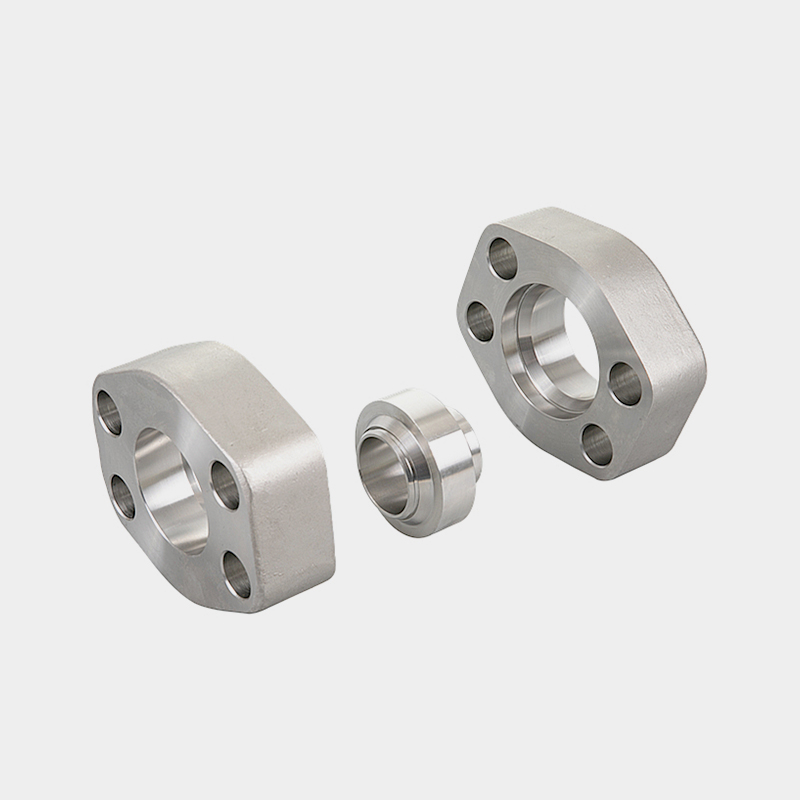

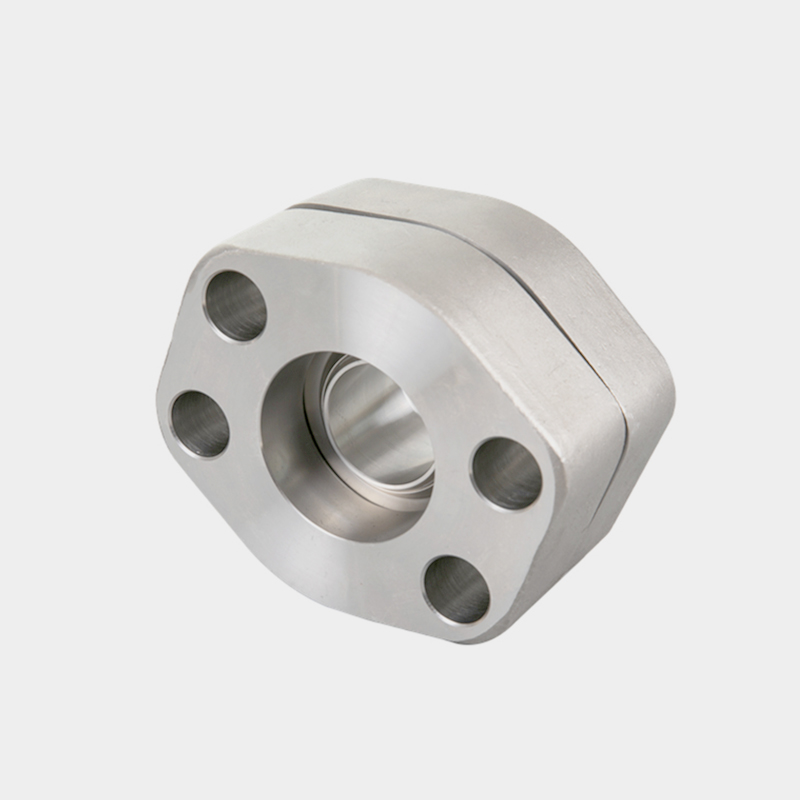

All flare flange clamps of 4-bolt dimensions are the same to SAE J518 / ISO 6162 standards, the difference is connection way: Flare flange system is used for the deburred tube end is flared to 37°, An insert, soft sealed by an O-Ring, is located into each pipe end. By tightening the flanges together, a soft sealed, high-pressure tube connection is made.
Material of Flare flange clamps and couplings:
Carbon steel C45; Stainless steel 304, 316, or 316L.
SAE 6000 psi flange flare clamps dimensions
SAE 3000 psi flange flare clamps dimensions

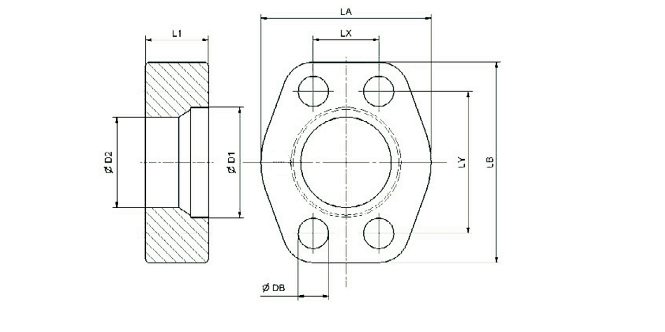

| Part No. | Size Inch | D1 | D2 | L1 | LA | LB | LX | LY | DB | Weight (Steel) kg/1 piece |
| FFC316 | 1 | 46 | 38.5 | 24 | 59 | 70.5 | 26.2 | 52.4 | 11 | 0.3 |
| FFC320 | 1 1/4 | 51 | 42.5 | 22 | 73 | 80.5 | 30.2 | 58.7 | 11 | 0.46 |
| FFC324 | 1 1/2 | 61.5 | 50.5 | 25 | 83 | 94.5 | 35.7 | 69.9 | 13.5 | 0.68 |
| FFC332 | 2 | 71.5 | 60.5 | 33 | 97 | 101.5 | 42.9 | 77.8 | 13.5 | 0.98 |
| FFC340 | 2 1/2 | 85 | 75.5 | 44 | 109 | 115.5 | 50.8 | 88.9 | 13.5 | 1.63 |
| FFC348 | 3 | 102.5 | 90.5 | 50 | 132 | 135 | 61.9 | 106.4 | 17 | 2.79 |
| FFC364 | 4 | 127.5 | 115.5 | 35 | 152 | 162 | 77.8 | 130.2 | 17 | 4.25 |
| FFC380 | 5 | 152.5 | 125.5 | 45 | 181 | 184 | 92.1 | 152.4 | 17 | 4.68 |
SAE 6000 psi flange flare clamps dimensions
| Part No. | Size Inch | D1 | D2 | L1 | LA | LB | LX | LY | DB | Weight (Steel) kg/1 piece |
| FFS616 | 1 | 46 | 38.5 | 24 | 70 | 81 | 27.8 | 27.8 | 13 | 0.53 |
| FFS620 | 1 1/4 | 51 | 42.5 | 30 | 78 | 95.5 | 31.8 | 31.8 | 15 | 0.92 |
| FFS624 | 1 1/2 | 61.5 | 50.5 | 35 | 95 | 112 | 36.5 | 36.5 | 17 | 1.54 |
| FFS632 | 2 | 71.5 | 60.5 | 40 | 114 | 133.5 | 44.5 | 44.5 | 22 | 2.44 |
