1. Executive standard:ISO6161 ISO6162 SAEJ518C SN532 JB/ZQ4187-97
2. Product material: U.S. Standard Stainless Steel 304L/316L; Carbon steel 20#/45#/Q345/Q345B/Q345D/Q355B, etc.

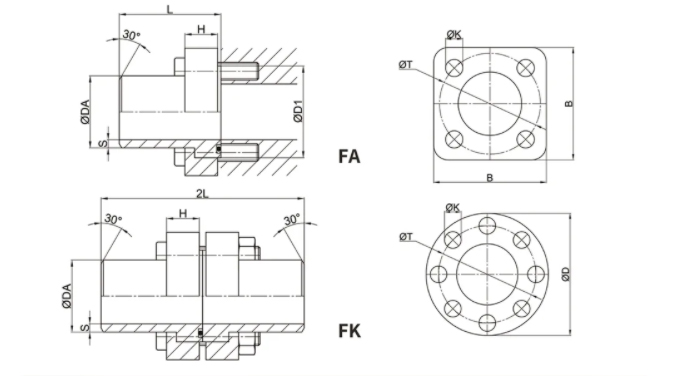

| Type | DAXS | B | D | H | T | D1 | K | L | Bolt | O-ring | Weight(kg) |
| FA FK 10-4 |
17.2x3.6 | 50 | - | 19 | 44 | 28 | 11 | 43 | M10X35 M10X55 |
15.54x2.62 | 0.43 0.83 |
| FA FK 12-4 |
20x4, 22x4 | 60 | - | 19 | 54 | 38 | 11 | 50 | M10X35 M10x55 |
23.47x2.62 | 0.62 1.2 |
| FA FK 16-4 |
26.9x4.5 | 60 | - | 19 | 54 | 38 | 11 | 50 | M10X35 M10X55 |
23.47x2.62 | 0.62 1.2 |
| FA FK 20-4 |
33.7x5.6 | 70 | - | 19 | 64 | 46 | 13 | 56 | M12X40 M12X55 |
29.82x2.62 | 0.9 1.75 |
| FA FK 25-4 |
42.8x8 | 80 | - | 24 | 72 | 55 | 13 | 64 | MI2X45 M12X70 |
37.70x3.53 | 1.4 2.65 |
| FA FK 32-4 |
48.3x8 | 90 | - | 29 | 80 | 60 | 17 | 68 | M16X55 M16X80 |
42.50x3.55 | 2.1 4 |
| FA FK 40-4 |
60.3x10 | 100 | - | 38 | 98 | 76 | 17 | 80 | M16X65 M16X100 |
53.34x5.33 | 3.1 6 |
| FA FK 50-4 |
76.1x12.5 | 120 | - | 47 | 118 | 92 | 21 | 98 | M20X75 M20X120 |
62.87x5.33 | 5.5 10.6 |
| FA FK 65-4 |
76.1x12.5, 89x14.2 | 150 | - | 48 | 145 | 110 | 25 | 109 | M24X80 M24X130 |
79.60x5.7 | 9.5 18 |
| FA FK 80-4 |
114.3x17.5, 114.3x20 | 180 | - | 58 | 175 | 135 | 32 | 135 | M30X90 M30X150 |
89.60x5.7 | 17 33 |
| FA FK 100-4 |
139.7x22.2, 152.4x28 | - | 245 | 69 | 200 | 168 | 25 | 150 | M24X100 M24X170 |
114.60x5.7 | 29 57 |
| FA FK 125-4 |
177.8x30 | - | 300 | 79 | 245 | 205 | 32 | 186 | M30X120 M30X200 |
148.59x6.99 | 48.5 95.5 |
| FA FK 150-4 |
193.7x32, 219.1x38 | - | 355 | 90 | 290 | 245 | 38 | 200 | M36X140 M36X220 |
170.00x7 164.47x6.99 |
58 112 |
