Wholesale Jaw To Jaw Turnbuckle Assembly

Home / Products / Turnbuckle Assembly / Turnbuckle DIN 1478 Jaw&Jaw Assembly

How Can We Help You ?

We will reply you within 24 hours in working day.

+86-13486669457 Contact Us
  • Turnbuckle DIN 1478 Jaw&Jaw Assembly

Turnbuckle DIN 1478 Jaw&Jaw Assembly

  • Turnbuckle DIN 1478 Jaw&Jaw Assembly
Inquiry
Turnbuckle is according to DIN1478 2005 version.
Hot drop forged Jaws with RH and LH thread.
Bolt acc.to  DIN601,Nut  acc. to DIN934
Series of rigging screws; adjustable leveling assembly  (stabilizer)  and ratchet jack  ( lifting arm),  stabilizer chains assembly, top link assembly(upper link arm), lower link arm, ball joint terminals, ball and bushes, crossbar, top hooks, ball tie-rods and swiveling tie rods, turnbuckles, etc.

PREV：Turnbuckle DIN 1478 Eye&Eye Assembly
NEXT：Turnbuckle DIN 1478 Frame Assembly
  • Description
  • Inquiry
  • Turnbuckle is according to  DIN1478 2005 version.
    Hot drop forged Jaws with  RH and LH  thread.
    Bolt acc.to  DIN601,Nut  acc. to DIN934

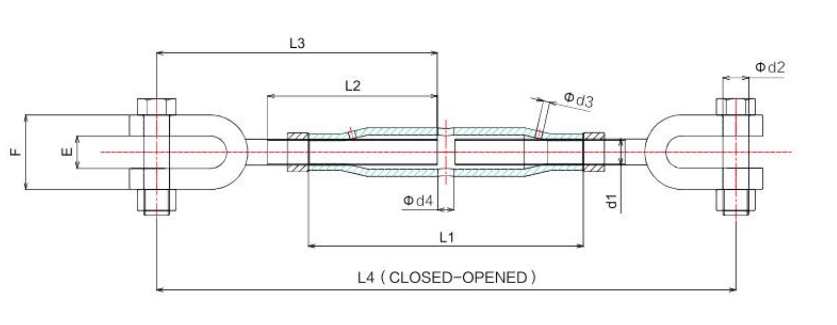

    Part No. Thread d1 d2 d3 d4 L1 L2 MIN L3 L4 Adjustable E F Weight kg
    TF0080 M8 6.2 4 6 110 63 101 202-287 85 9 25 0.3
    TF0100 M10 8.3 4 8 125 75 122 244-339 95 10 29 0.43
    TF0120 M12 10.5 4 10 125 95 157 314-404 90 13 35 0.69
    TF0160 M16 12.5 4 10 170 100 175 350-470 120 18 45 1.61
    TF0200 M20 16.5 4 12 200 120 205 410-550 140 20 50 2.32
    TF0240 M24 3 4 12 255 145 250 500-680 180 35 71 5.1
    TF0300 M30 3 4 16 255 145 250 500-660 160 35 71 7.01
    TF0360 M36 37 6 16 295 160 332 664-844 180 57 100 11.5
