  • Turnbuckle DIN 1478 Frame Assembly

Turnbuckle DIN 1478 Frame Assembly

  • Turnbuckle DIN 1478 Frame Assembly
Inquiry
1. Material of closed body turnbuckle: Seamless cold drawn tubes of grade L 235 or L 355 steel as in DIN EN 10224, in China Q235A, Q345B steel. Stainless steel is Grade A4 l as in DIN EN ISO 3506-2, in China 304, 316, or 316L stainless steel.
2. Screw threads of turnbuckle: The threads of turnbuckles shall be metric coarse pitch threads as in DIN ISO 965-2, produced to tolerance 6H. Turnbuckle with Right-hand thread and Left-hand thread, as RH and LH thread.
3. Surface finish of turnbuckle: DIN EN ISO 4042 shall apply with regard to electroplating. DIN EN ISO 10684 shall apply with regard to hot dip galvanizing. For turnbuckles made of stainless steel, passivation in accordance with DIN EN ISO 16048 is required.
4. Turnbuckle Connection components: Welding stud as per DIN 34828. Customized forged clevis fork links, eye blot, hooks, rod ends, etc.
5. Turnbuckle Assembly Turnbuckles shall be assembled with welding studs, jaw/jaw, eye/eye, and hook/hook. Jaw/eye, jaw/hook, eye/hook, etc.
PREV：Turnbuckle DIN 1478 Jaw&Jaw Assembly
NEXT：No next article
  • Description
  • Inquiry

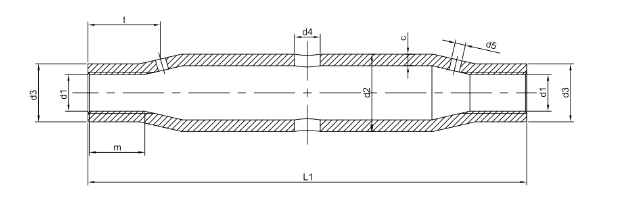

  • Part No. Thread d, L， m d2 d,Min d C d Weight kg
    TBM06 M6 110 7.5 17.2 9 6 2.9 0.13
    TBM08 M8 110 10 17.2 12 8 3.6 4 0.15
    TBM10 M10 125 12 21,3 15 8 4 4 0.19
    TBM12 M12 125 15 25 18 10 4 4 0.25
    TBM16 M16 170 20 30 22.5 10 4.5 4 0.46
    TBM20 M20 200 24 33.7 27 12 5 4 0.65
    TBM24 M24 255 29 42.4 32 12 5.6 1.13
    TBM27 M27 255 40 42.4 12 5.6 4 1.24
    TBM30 M30 255 36 51 38 16 6.3 4 1.65
    TBM36 M36 295 63.5 47.5 16 8 6 2.45
    TBM42 M42 330 51 70 57 20 8.8 6 2.84
    TBM48 M48 355 58 82.5 63 20 10 6 5.9
    TBM52 M52 355 58 82.5 20 10 10
    TBM56 M56 90 25 15 10
    TBM64 M64 425 77 100 25 16 10
