Wholesale Closed Body Turnbuckle Clamping

Home / Products / Turnbuckle Assembly / Closed Body Turnbuckle Clamping

How Can We Help You ?

We will reply you within 24 hours in working day.

+86-13486669457 Contact Us
  • Closed Body Turnbuckle Clamping

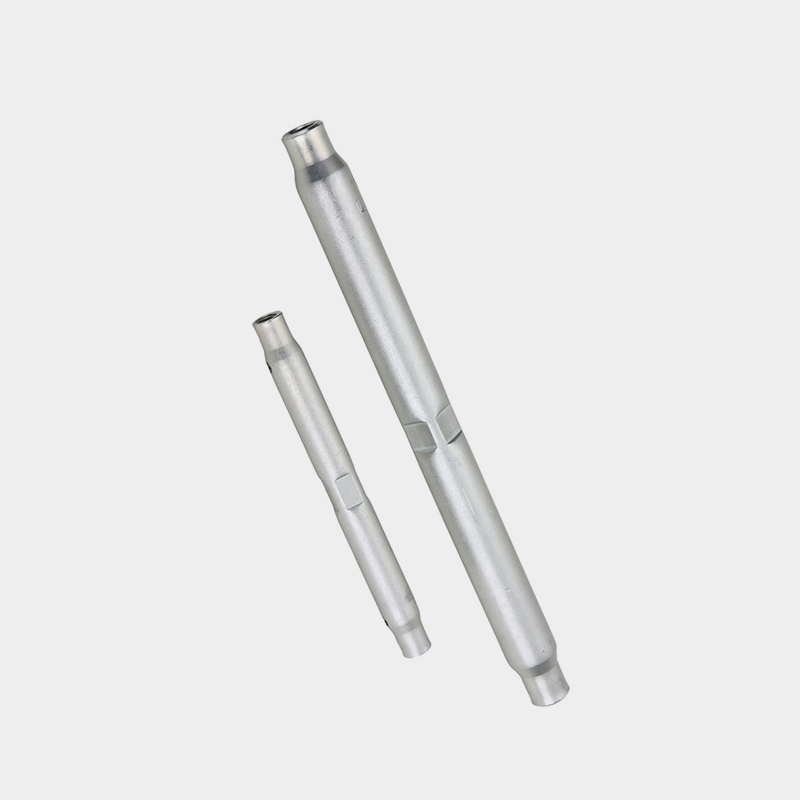

Closed Body Turnbuckle Clamping

  • Closed Body Turnbuckle Clamping
Inquiry
Closed body turnbuckle clamping is a mechanical device used to tightly fasten two objects or components together and is suitable for a variety of industries that require high load capacity and safe fastening. It consists of a turnbuckle, which is a device with two threaded eyebolts connected by a metal body. The closed body design means the turnbuckle is enclosed within a protective metal casing, which provides additional Security and prevents dirt or debris from interfering with the clamping mechanism. The clamping mechanism is adjustable and can be tightened or loosened as needed to achieve the desired tension level.
PREV：Turnbuckle DIN 1479
NEXT：Hook Hook Turnbuckle DIN 1478 Assembly
  • Description
  • Inquiry
  • Turnbuckles Body Type: Closed Body
    Type: European Type
    Material: Carbon Steel, Stainless Steel
    Surface Treatment: Zinc Plated
    Thread Tolerance: 6h For M6 Yo M80
    Quality Standard: Exporting Germany Quality
    Available Color: Self-Color, Hot Dipped Galvanized, Electroplating, Black
    Certificates: Iso9001
    Measurement System: Metric, Imperial (Inch)
    Application: Heavy Industry, Retail Industry, General Industry, Oil & Gas, Automotive Industry


    turnbuckles
    Din1478 with
    Eye&Eye    		 Dimensions in mm
    Gewinde Thread A D H F J Weight kg/100
    piece
    M6 110 6 50 74 10 16
    M8 110 8 52 80 11 10
    M10 125 8 59 95 15 28
    M12 125 10 66 107 17 42
    M16 170 10 85 146 22 91
    M20 200 12 100 170 24 136
    M24 255 12 134 213 33 260
    M30 255 16 150 255 39 375
    M36 295 16 150 260 37 635
    M42 330 20 165 285 48 1050
    M48 355 20 185 335 58 1550

    turnbuckles
    Din1478 with
    Hook&Hook    		 Dimensions in mm
    Gewinde Thread A D H I K Weight kg/100
    piece
    M6 110 6 50 74 9.5 16
    M8 110 8 60 98 11 20
    M10 125 8 73 116.5 14 30
    M12 125 10 90 146 18 47
    M16 170 10 100 165 19 101
    M20 200 12 105 180 21 140
    M24 255 12 135 225 29 286
    M30 255 16 140 255 31 409
    M36 295 16 170 300 35 685
    M42 330 20 165 285 48 1050
    M48 355 20 185 335 58 1550


    TURNBUCKLES
    DIN 1478
    JAW&JAW
    Will Breaking load d1 d4 d5 f g
    L1 L3 L4 adjustable weight  per 100
    Pcs    		 Units per bag t BF
    min.KN    		 mm mm
    mm mm mm mm mm mm mm kg 0.25
    10 M8 8 M6×35 25 9 110 101 68 85
    26 1 0.3 12 M10 8 M8×40 29 10.7 125
    122 82 90 45 1 0.6 24 M12 10 M10×50
    35 15.5 125 151 90 90 66 1 1.5 70
    M16 M16 46 20 170 175 102 110 158
    1 3 135 M20 M20 61 29 200 205
    115 130 302 1 5.5 250 M24 M24 71
    34 255 255 125 160 509 1 8 360 M30
    M30 95 44 255 300 150 180 982 1
