Wholesale Turnbuckle DIN 1479

Home / Products / Turnbuckle Assembly / Turnbuckle DIN 1479

How Can We Help You ?

We will reply you within 24 hours in working day.

+86-13486669457 Contact Us
  • Turnbuckle DIN 1479

Turnbuckle DIN 1479

  • Turnbuckle DIN 1479
Inquiry
The turnbuckle DIN 1479 is a mechanical coupling device consisting of two threaded eyebolts with a center body. The tension is adjusted by turning the eyebolt. It is suitable for tensioning cables, wires and ropes, helping to secure and align them. Both the center body of the DIN 1479 turnbuckle and the eyebolt are made of high-quality steel and feature right-hand threads on one end and left-hand threads on the other, an arrangement that allows for easy adjustment and tensioning by simply turning the eyebolt.
PREV：Stainless Steel Hook Eye Turnbuckle DIN 1478
NEXT：Closed Body Turnbuckle Clamping
  • Description
  • Inquiry
  • Turnbuckles Body Type: Closed Body, Open Body
    Type: European Type
    Surface Treatment: Zinc Plated
    Body Material: Stainless Steel 304
    Type: European Type
    Design Skill: Heavy Duty
    Size: M8-M56
    Surface: Galvanized
    Measurement System: Imperial (Inch)
    Application: Heavy Industry, Mining, Water Treatment, Healthcare, Retail Industry, General Industry, Oil & Gas, Automotive Industry

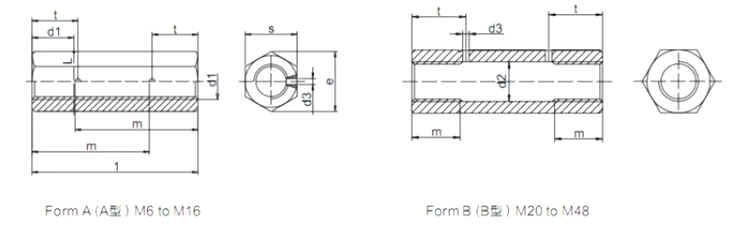

    Part No. Thread d1 d2 d3 S L M T Weight kg
    TBNO6 M6 4 10 30 22.5 9.5
    TBNO8 M8 4 13 35 25 12
    TBN10 M 10 4 16 45 33 14
    TBN12 M 12 4 18 55 40 17
    TBN14 M 14* 4 24 65 55 22
    TBN16 M 16 4 24 75 55 22
    TBN20 M 20 21 4 30 95 24 26
    TBN24 M24 26 4 36 115 29 31
    TBN27 M27* 32 4 41 120 32 31
    TBN30 M30 32 4 46 125 36 38
    TBN36 M36* 6 55 145 40
    TBN42 M42* 6 65 165 44
    TBN48 M48* 6 75 190 48
